Molybdenum Rhenium Alloys

  • Molybdenum Rhenium Sheet
  • Molybdenum Rhenium Rod

Rhenium has a high melting point of 3170℃. It owns high density of 21.02g/cm3, and also it has the property of high strength and good plasticity. These characteristics make it have the great advantages in the development of Mo-Re alloy.

The tensile strength of pure molybdenum at room temperature is about 650MPa, while the tensile strength of molybdenum-rhenium alloy with high rhenium can reach more than 1000MPa.

The production process of Molybdenum rhenium alloy includes the below two parts:
1. Preparation of molybdenum-rhenium alloy blank
2. Pressure processing of molybdenum-rhenium alloy billet

Process of Ingot Molybdenum Rheniu

The pressed and sintered molybdenum rhenium alloys billet can be used to produce rod and wire. They will be machined by rotary forging and drawing. And the MoRe alloys billet can also be rolled into sheet or foil by multi-step cold rolling.

Usually, when the rhenium content is above 5%, the hardness of the Mo-Re alloys will increase with the increase of rhenium content. The hardness of Mo-41Re alloy is 60% higher than that of pure molybdenum. And the strength is 75% higher than pure molybdenum. At the same time, the elongation can reach 7%.

Application of MoRe alloys
Material Application Industry
Mo-Re Structural cladding material Space nuclear reactor
Mo-Re Electronic tube Electronic industry
Mo-Re materials for special light bulbs Electronic industry
Mo-41Re The materials of rocket boosters Aerospace industry
Mo-47Re Heat Element  Resistance furnace
Mo-47.5Re The materials of rocket boosters Aerospace industry
Mo-50Re The materials of rocket boosters Aerospace industry
Mo-50Re wire Element The heater
Mo-50Re foil Element The heater
Mo-50Re wire Element Reflector
Mo-50Re foil Element Reflector
Mo-20Re Thermocouple High temperature measurement
Mo-40Re Thermocouple High temperature measurement
Mo-50Re Thermocouple High temperature measurement

Molybdenum Rhenium Alloys Wire

After a certain proportion of rhenium is added to molybdenum, the ductility, welding and forming properties of the molybdenum rhenium alloys are improved accordingly. Molybdenum rhenium alloy can maintain good ductility even when using in condition of high temperature. Therefore, molybdenum rhenium alloys wire is often used as welding wire. In the electronics industry, aerospace industry, molybdenum rhenium wire is used to make wire mesh. Molybdenum-rhenium alloys wire is also commonly used in the nuclear industry. We can produce molybdenum-rhenium alloys wire according to customer's requirement.

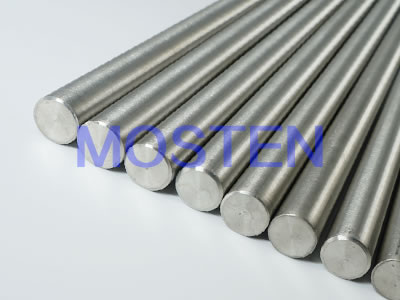

Molybdenum Rhenium Alloys Rod

Molybdenum rhenium alloys rod are widely used in aerospace and electronic fields. In the production of high temperature furnace, molybdenum rhenium alloys rods are also very popular. We can produce molybdenum-rhenium alloys rods according to customer's requirements.

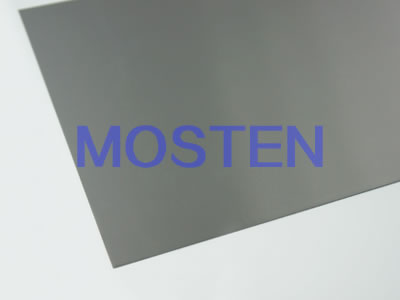

Molybdenum Rhenium Alloys Sheet and Molybdenum Rhenium Alloys Foil

In the cathode emitter, you will find the use of molybdenum rhenium alloys plate and molybdenum rhenium alloys foil. Molybdenum rhenium alloys plates and molybdenum rhenium alloys foils are widely used in the electronics industry. Semiconductor industry and furnace industry also use molybdenum rhenium alloys sheets and molybdenum rhenium alloys foils. We can produce molybdenum-rhenium sheet and molybdenum-rhenium foil according to customer's requirement.

Molybdenum Rhenium Alloys Tube

In addition to the aerospace and electronics industries, molybdenum-rhenium alloys tubes also be used in the nuclear industry. In addition to the industrial field, molybdenum rhenium alloys tubes can be used in the medical field. Capillary molybdenum-rhenium alloys tubes can be used for cardiovascular stents. We can produce molybdenum-rhenium alloys tube according to customer's requirement.

If you would like to purchase molybdenum rhenium alloys from China, please don't hesitate to Contact Us.
